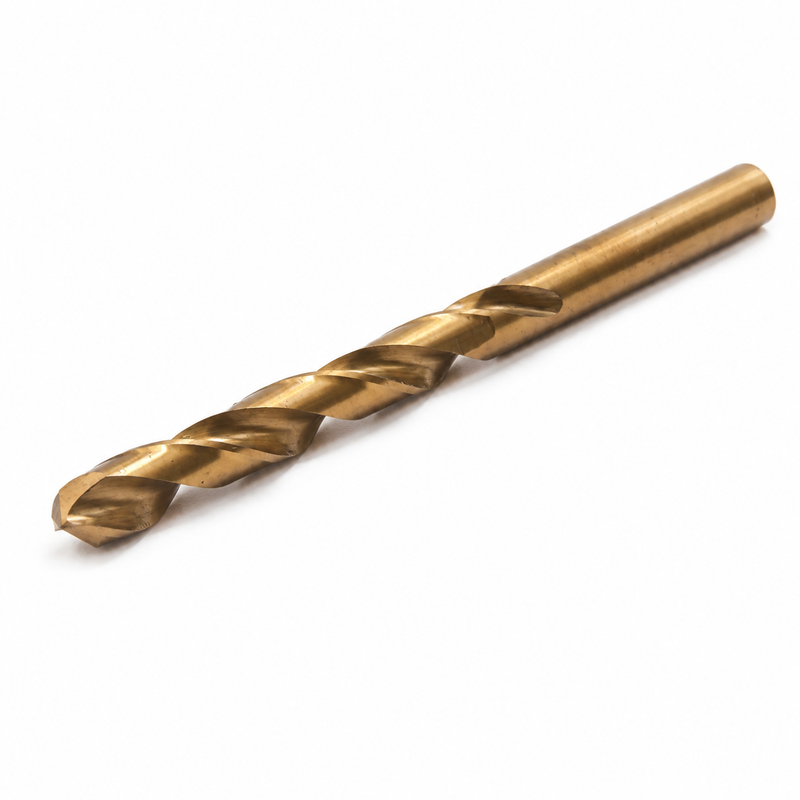

METRIC METAL DRILL BITS - M35 COBALT

METRIC METAL DRILL BITS - M35 COBALT

by Smith & ARROW
$2.05 - $18.36
$2.05
$2.05 - $18.36
$2.05

Cobalt increases the strength of the steel and significantly improves heat resistance, making these drill bits ideal for drilling hard and tough materials. Reduced heat buildup during drilling helps prevent premature wear, delivering safe, efficient drilling performance and extended tool life in demanding applications.

  • Performs and outlasts standard HSS drill bits, especially when drilling tough metals

  • Fully ground M35 HSS (Cobalt) construction for extended drill life

  • 135° split point for faster cutting and reduced wandering

  • Precision-engineered shank for accurate hole sizing

  • Efficient swarf clearance for smooth, clog-free drilling

INTERNATIONAL QUALITY ASSURANCE: ISO 9001

Specifications

• Quantity: 1 x Bit
• Material: M35 HSS (High-Speed Steel), steel alloy with 5% Cobalt
• Fully Ground: Yes
• Split Point: 135° Split Point
• Type: Single Ended
• Measurement: Metric
• Machine: Drill (use at low speed)
• Intended Use: Stainless steel, all metals, aluminium, brass, and plastic

• Available Sizes:
1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm, 9.5mm, 10.0mm, 10.5mm, 11.0mm, 11.5mm, 12.0mm, 12.5mm, 13.0mm

• Dimensions (Diameter - Length – Flute)
1.0mm – 34mm – 12mm
1.5mm – 43mm – 20mm
2.0mm – 49mm – 24mm
2.5mm – 57mm – 30mm
3.0mm – 61mm – 33mm
3.5mm – 70mm – 39mm
4.0mm – 75mm – 43mm
4.5mm – 80mm – 47mm
5.0mm – 86mm – 52mm
5.5mm – 93mm – 57mm
6.0mm – 93mm – 57mm
6.5mm – 101mm – 63mm
7.0mm – 109mm – 69mm
7.5mm – 109mm – 69mm
8.0mm – 117mm – 75mm
8.5mm – 117mm – 75mm
9.0mm – 125mm – 81mm
9.5mm – 125mm – 81mm
10.0mm – 133mm – 87mm
10.5mm – 133mm – 87mm
11.0mm – 142mm – 94mm
11.5mm – 142mm – 94mm
12.0mm – 151mm – 101mm
12.5mm – 151mm – 101mm
13.0mm – 151mm – 101mm
